OVERVIEW

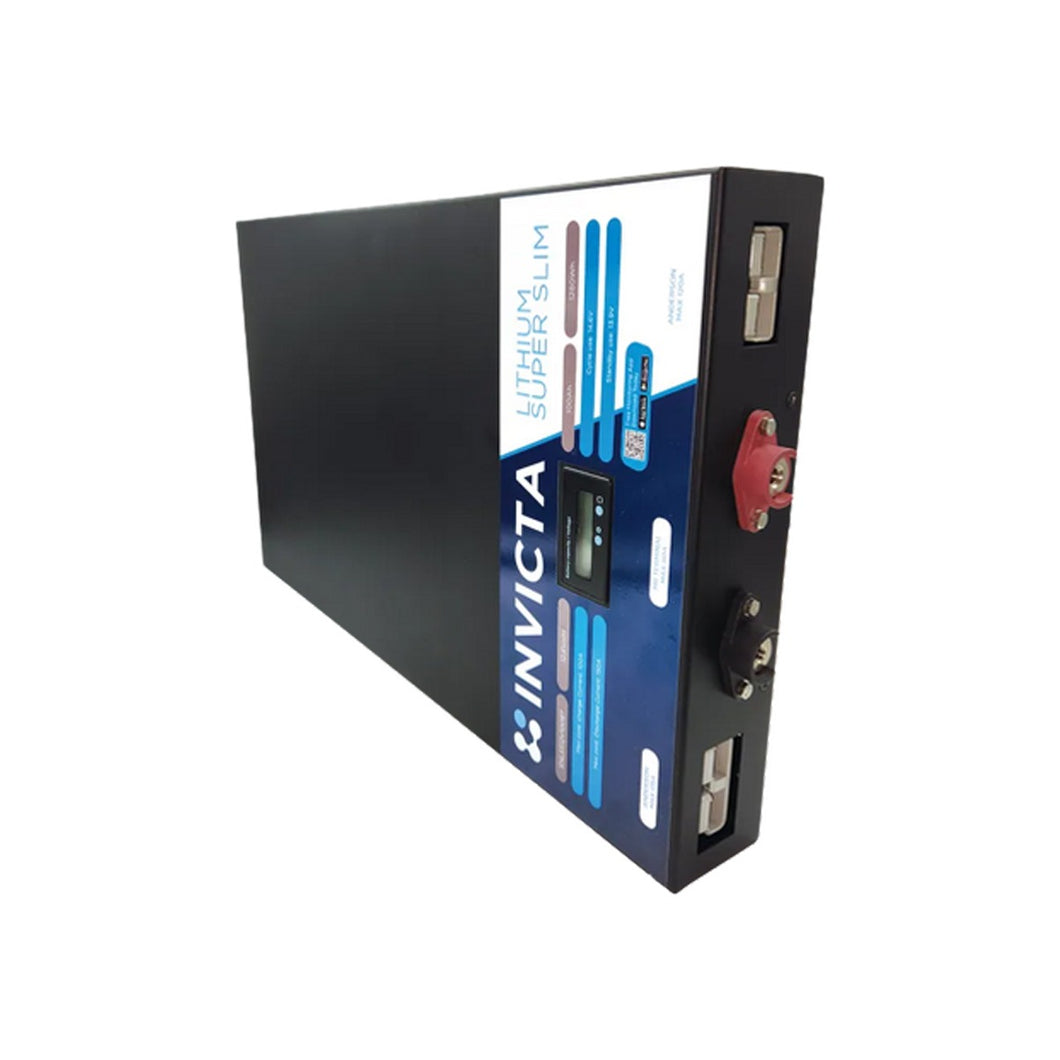

The Invicta SuperSlim 100Ah Bluetooth battery offers exceptional performance with up to 8 times the cycle life of traditional SLA batteries, reducing your total cost of ownership.
Featuring LiFePO4 chemistry and an integrated BMS, it ensures safety against overcharge, discharge, temperature fluctuations, and short circuits. Its modular design allows for easy expansion, while the high energy density cuts weight by more than half compared to SLA batteries.
With fast recharge times, a flat discharge curve for longer runtime, and low self-discharge, the Invicta SuperSlim is perfect for reliable, long-lasting power in any application.
SPECIFICATIONS
| Cycle Life (100% DoD) |
≥2000 |
|---|---|
| Cut Off Voltage |
10.5V |
| Nominal Voltage |
12.8v |
| Max. Charge Current |
100A |
| Max. Series / Parallel Configuration |
4P / OS |
| Width (mm) |
57.4 ± 2mm |
| custrecord_pkfd_relveh_spectable_ah |
13.8 ± 0.1V |
| Max. Charge Voltage (V) |
14.5 ± 0.1V |
| Height - incl. terminal (mm) |
336 ± 2mm |
| Length (mm) |
523 ± 2mm |
| Max. Discharge Current |
150A |
| Operating Temp – Charge |
0 - 45°C |
| Short Circuit Release |
Load Release |
| Nominal Capacity (25°C, 0.33C) |
100AH |
| Bluetooth Connectivity |
Yes |
| Operating Temp – Discharge |
-20 - 60°C |
| Recommended Current Charge |
≤50A |
| Weight (Kg) |
15.0kg |
| Terminal |
Anderson 175A Anderson 120A M8 |
| Max. Pulse Discharge Current |
320A |
