OVERVIEW

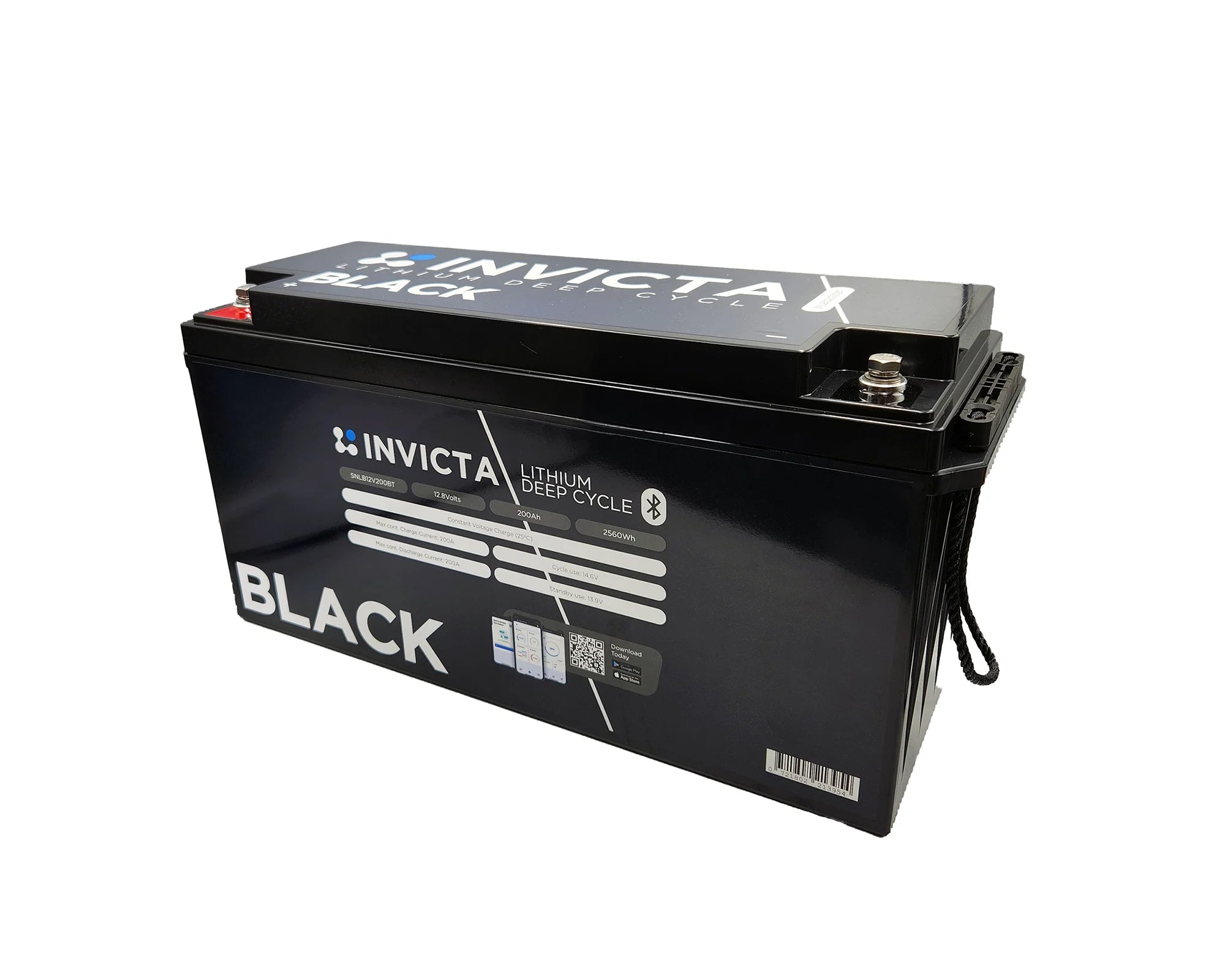

The Invicta Black 12V 200Ah with Bluetooth is a high-performance LiFePO4 battery, offering over 3,000 charge cycles—up to 8 times longer than SLA batteries—lowering your total cost of ownership.
It provides 60% more capacity than SLA, delivering longer runtimes and faster recharging. With Bluetooth connectivity, you can monitor battery status remotely.
The integrated BMS ensures safety with protection against overcharge, discharge, temperature, and short circuits. It’s lightweight, with a flat discharge curve for efficient use, and a low self-discharge rate for longer storage. IEC 62619 certified for quality and safety.
SPECIFICATIONS
| Cycle Life (100% DoD) |
≥3000 |
|---|---|
| Cut Off Voltage |
11V |
| Nominal Voltage |
12.8v |
| Max. Charge Current |
150A |
| Max. Series / Parallel Configuration |
4S/4P |
| Width (mm) |
172 ± 2mm |
| custrecord_pkfd_relveh_spectable_ah |
13.8 ± 0.1V |
| Max. Charge Voltage (V) |
14.6 ± 0.1V |
| Height - incl. terminal (mm) |
240 ± 2mm |
| Length (mm) |
485 ± 2mm |
| Max. Discharge Current |
200A |
| Dust & Water Resistance (IP) |
IP65 |
| Operating Temp – Charge |
0 - 50°C |
| Short Circuit Release |
Load Release |
| Nominal Capacity (25°C, 0.33C) |
200Ah |
| Bluetooth Connectivity |
Yes |
| Operating Temp – Discharge |
-20 - 55°C |
| Recommended Current Charge |
≤100A |
| Certifications |
62619 |
| Weight (Kg) |
21.5kg |
| Terminal |
M8 |
| Max. Pulse Discharge Current |
650A |
